High speed camera a tracking Vehicle

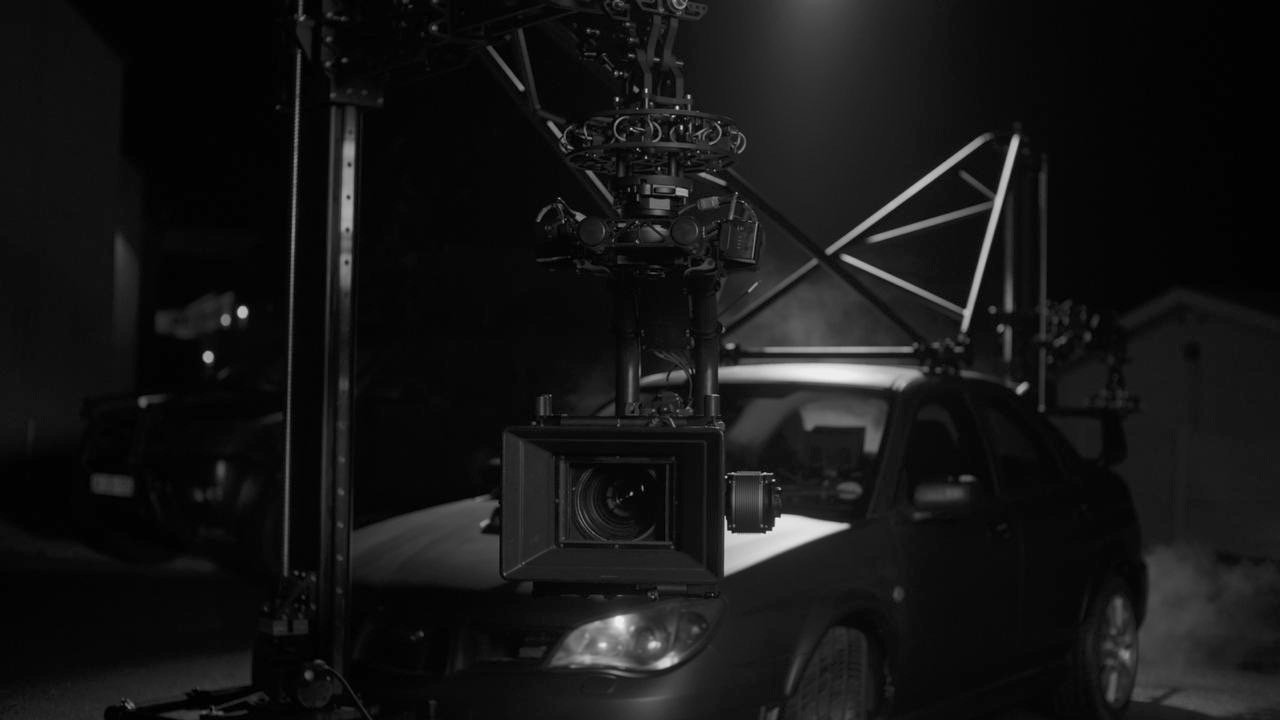

The Falcon is our in-house, custom-designed high-speed camera chase vehicle. equipped with customised 2-axis robotic arms, Three-stage vibration dampening, paired together with the mighty Freefly Movi XL or DJI Ronin 2 gimbals allow for a wide range of camera build options.

At the heart is a Subaru Impreza 2.5Turbo STI AWD, specifically designed & modified for seamless Dynamic high-speed filming at heart. This fast, all-wheel-drive Subaru Chase vehicle is very capable. It can carry a fully loaded Movi XL and adjust the camera without needing to re-rig. The vehicle has two robotic arms installed, allowing for quick gimbal movement for shooting from the front or back, even simultaneously. The Subaru Impreza was selected for its low centre of gravity and excellent cornering, which helps reduce production costs.

Engine Upgrades:
- Engine Block: 67249L
- Piston Set - Manley 99 50
- Manley Con-Rod Set
- Manley H Beam Turbo Tuff
- ARP Head Stud Kit EJ20/25
- ACL Race Bearing EJ20/25
- OEM EJ25 Gasket & Seal Kit
- OEM Oil Pump Assembly 12mm
- OEM EJ25 Nitride Crank Shaft
- OEM Crankshaft Sprocket 06-13
- Pyro Performance Bell-Mouth Downpipe
- Pyro Performance Cat-Back System
- BC Racing Dampening Extenders 20cm
- Engineering of Block, Heads, Flywheel
- HKS "EVC-S" Electronic Valve Boost Adjustment Kit
- Dual Fuel ECU Remap
- BC BR RH Coil Over Adjustable Suspension Set
- Mishimoto Radiator Impreza
- Mishimoto Radiator Hose Kit Red
- Zero Sport Racing Thermostat
- High Flow NAF Housing
- Electronic Intercooler Water Spray Kit
Robotic Filming Upgrades / Exterior:

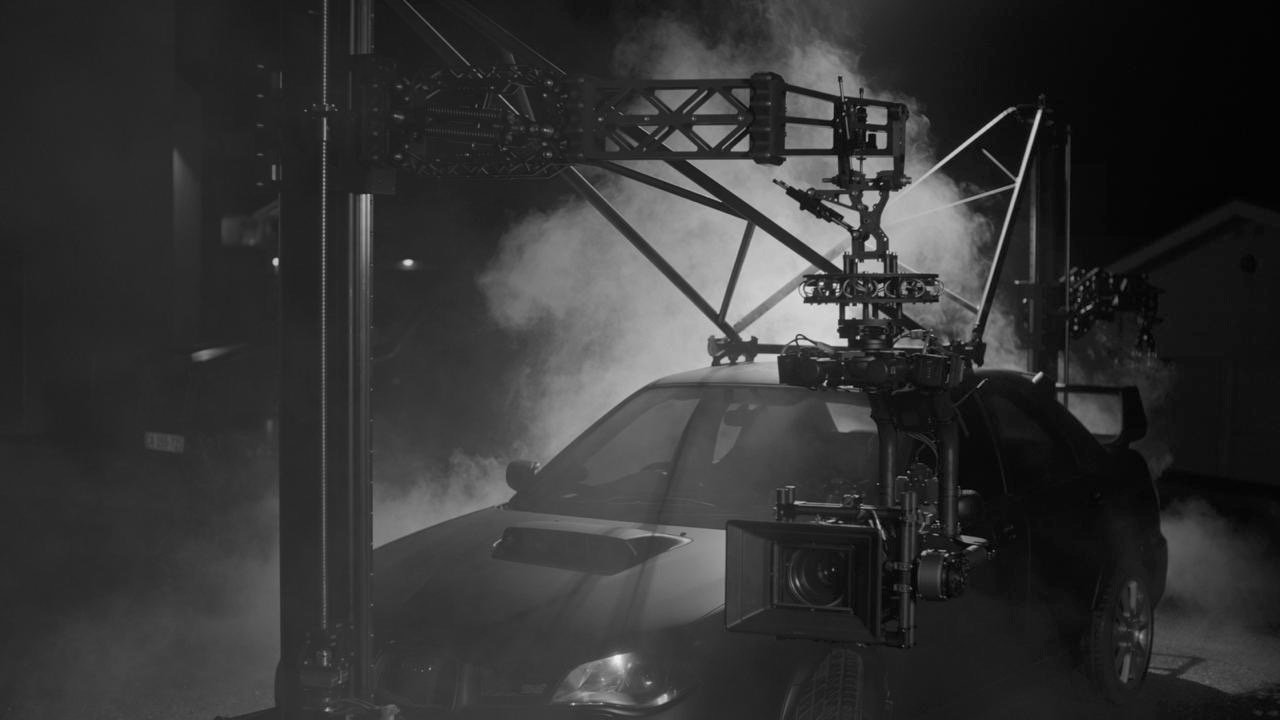

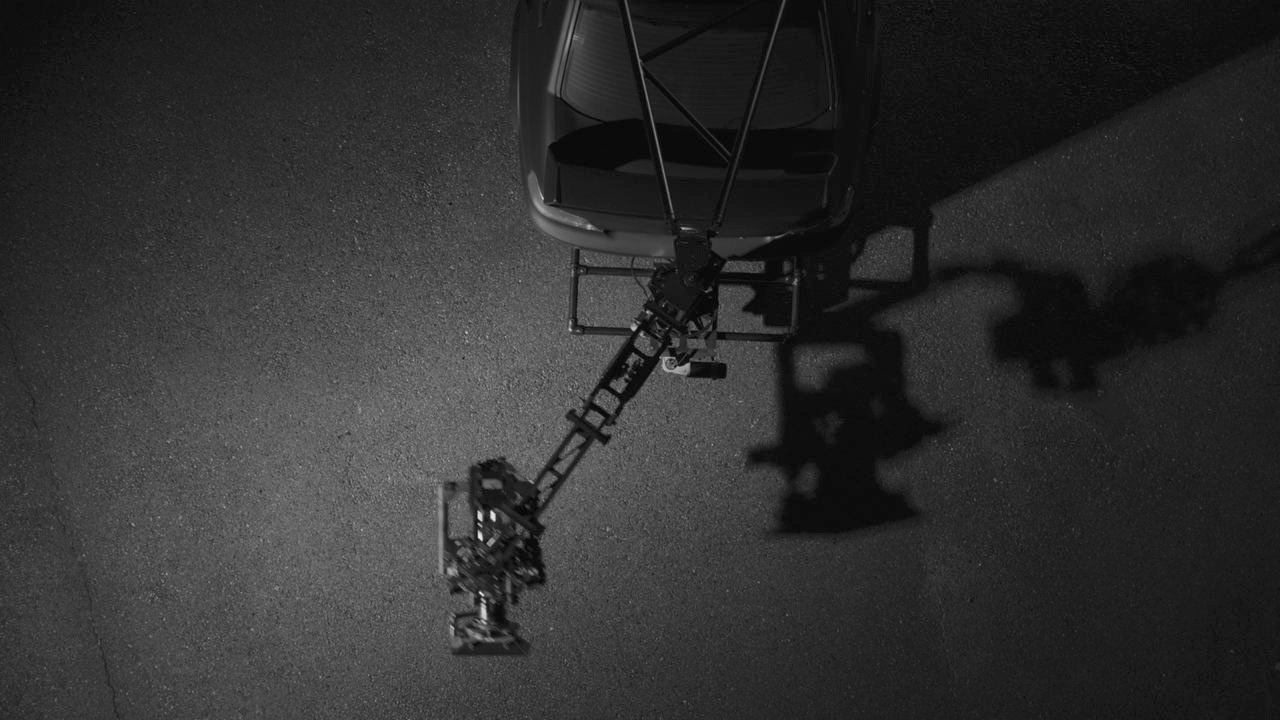

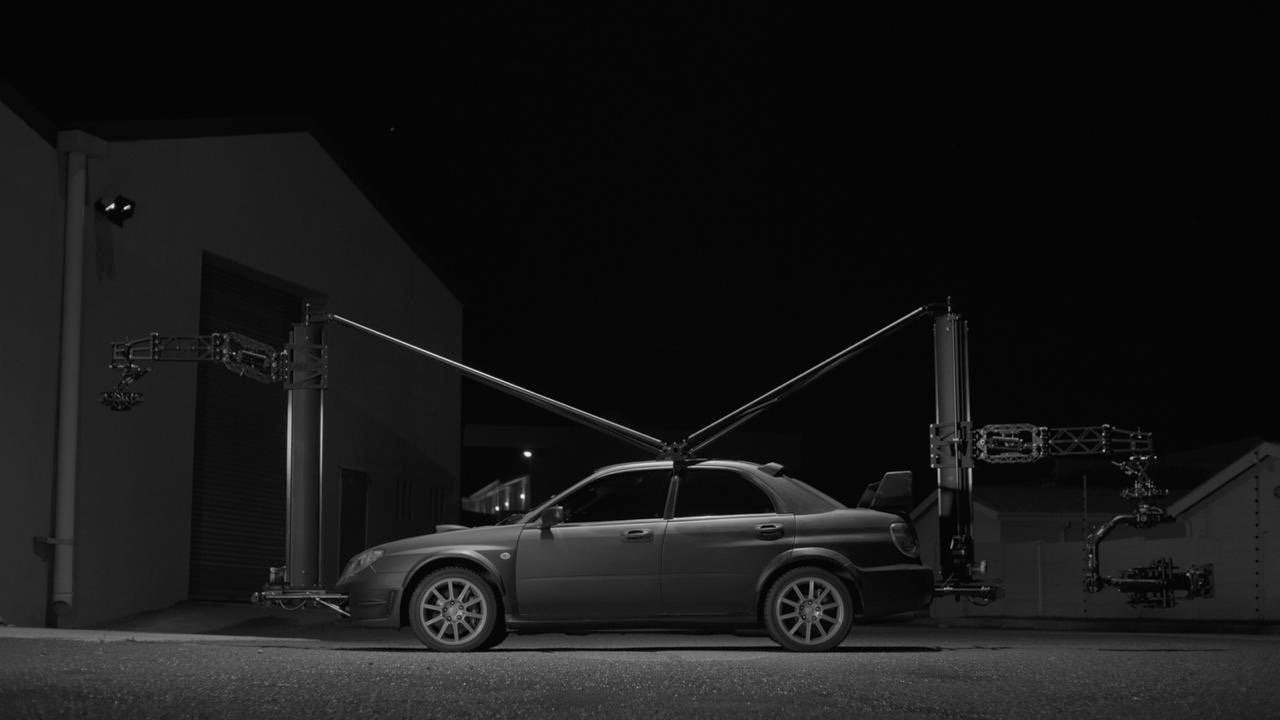

- Designed, Machined, Fitted 2x Aluminum Robotic Up/Down Crane Masts to Vehicle, Front and Back of Vehicle
- Both Include a Full Remote Control 2 Axis Up/Down & Left/Right Adjustment
- Adjustable Dampening Arms with Vertical Travel and Vibration Isolation Ring Fitted to Both Robotic Up/Down Rigs
Bodywork / Exterior Upgrades:
- Custom Fender Flares - Customised to Fit on Body + Flushed to Arches + Finishing
- Re-Spray Color Change from Black to White Full Vehicle Including Inside Doors & Boot Lid
- Removal & Re-Fitment of Front and Rear Windshields
- Tinting of All Windows - 20% All Round
- Headlight & Taillight Restoration Exterior
- Fitted 40mm Aluminum Wheel Hub Spaces
- 50mm Steel Pipe Assembly Welded into Subframe and Routed Through Front and Rear Bumpers of Vehicle for Crane Base Mounting Points
- Front and Rear Aluminum A-Frames Roof Strut Supports are Attached Between the Roof and the Top of the Robotic Crane
- Matte Black Liquid Vehicle Spray-On Wrap
