SPECS PAGE:

Uncompromised design, built for raw performance at the limits of cinema.

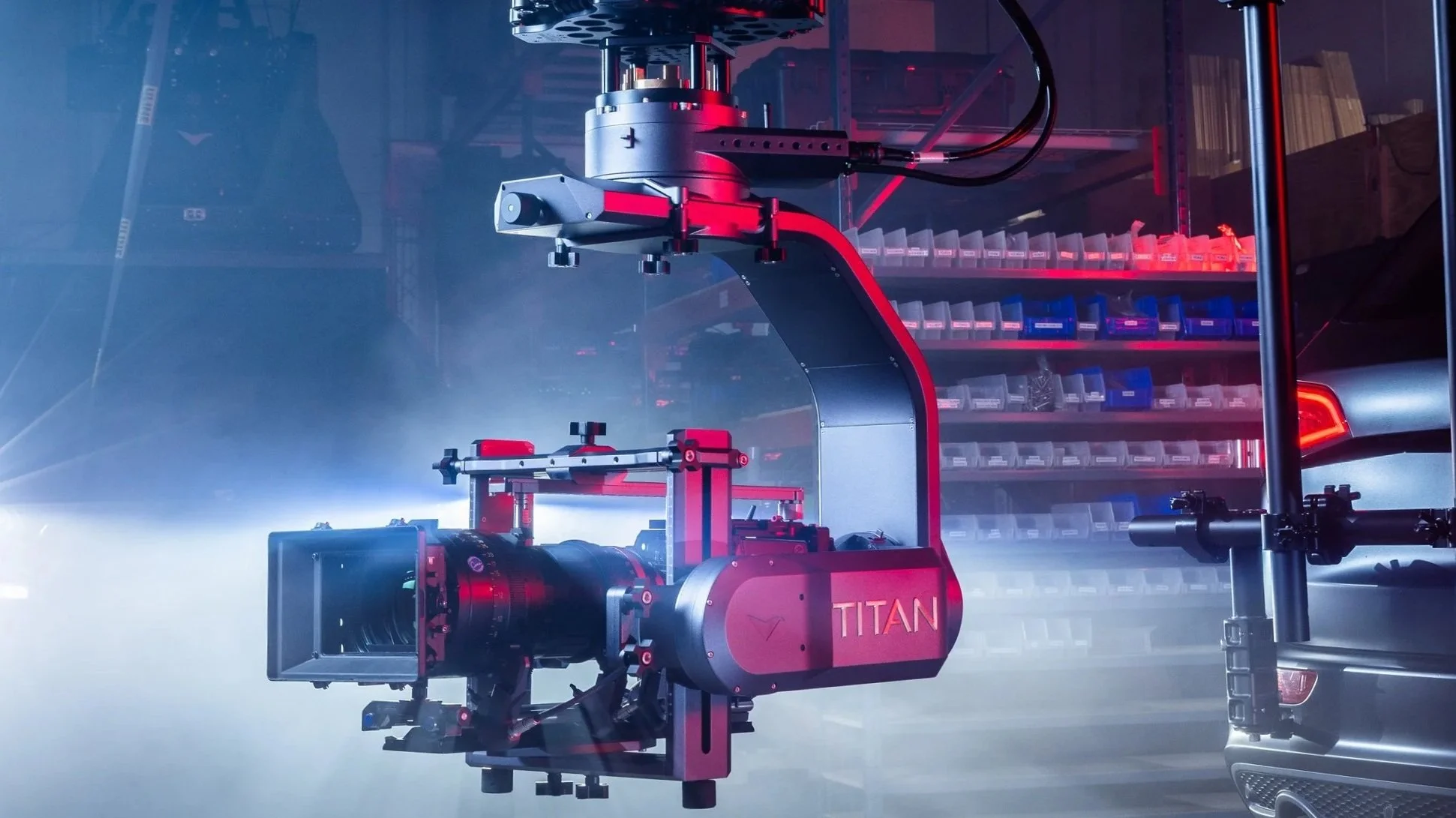

TITAN was built from the ground up with unwavering commitment to performance and robustness in its DNA. From a unified 6061-T6 billet aluminium mechanical structure to IP65-rated electronics and patented high torque slotless motors- every aspect of TITAN represents the bleeding edge of gyro stabilisation.

Specifications:

  • It all begins with an idea. Maybe you want to launch a business. Maybe you want to turn a hobby into something more.

  • TITAN is the first stabilised remote head to utilise slotless motor technology. Unlike traditional brushless motors used in all other gimbals, slotless motors have zero-cogging for superior pointing accuracy.

  • With a massive 152mm/6in diameter, these 48V motors are also the most powerful ever to be used in a cinema gimbal. TITAN produces peak power figures in excess of 2500W.

  • TITAN Gimbal Dimensions 669mm (L) x 520mm (W) x ~720mm (H) depends on config Camera build volume Dimensions 280mm (W) x 300mm (H) x 391.5mm (D) TITAN Controller Dimensions 340mm (W) x 225mm (H) x 70mm (D) depends on config TITAN Battery Dimensions, Weight 280mm x 150mm x 120mm, 18lbs/8.2kg Construction 6061-T6 Aluminum Max Operational Speed 100+ MPH Max Motor Torque 18Nm Max Payload Capacity 90lbs/41kg STATIC, 70lbs/32kg DYNAMIC Dry Weight 46lbs/21kg Mounting System Mitchell Mount + Adapters Payload Mounting Arri-style Dovetail Max Pan Speed 270º/sec Max Tilt Speed 300º/sec Max Roll Speed 90º/sec Pan Range of Motion 360º Continuous Tilt Range of Motion 360º Continuous Roll Range of Motion 360º Continuous Video Connectivity 12G-SDI
