THE FALCON

A custom-designed turbocharged Subaru Impreza STI, a legendary all-wheel-drive car, was converted into a dedicated camera tracking vehicle.

THE FALCON

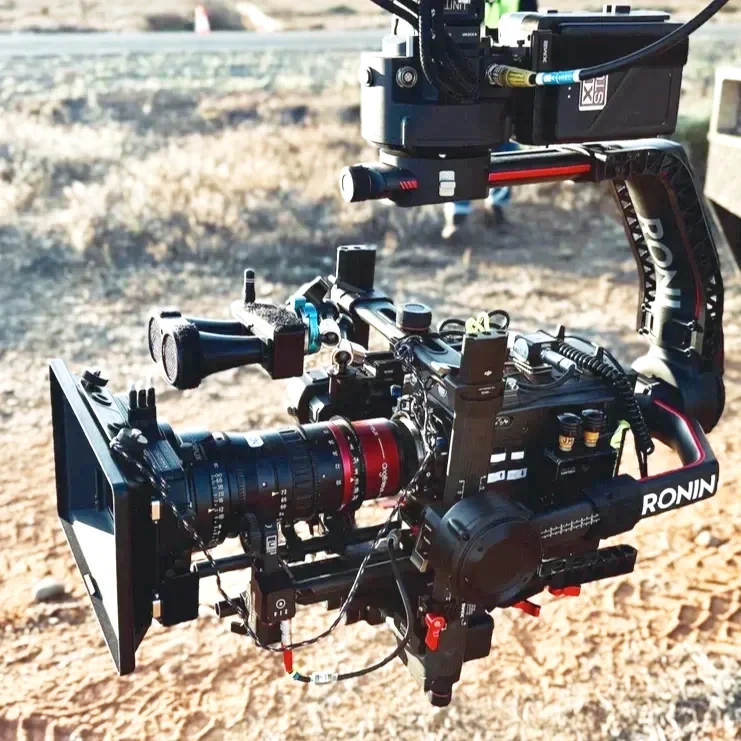

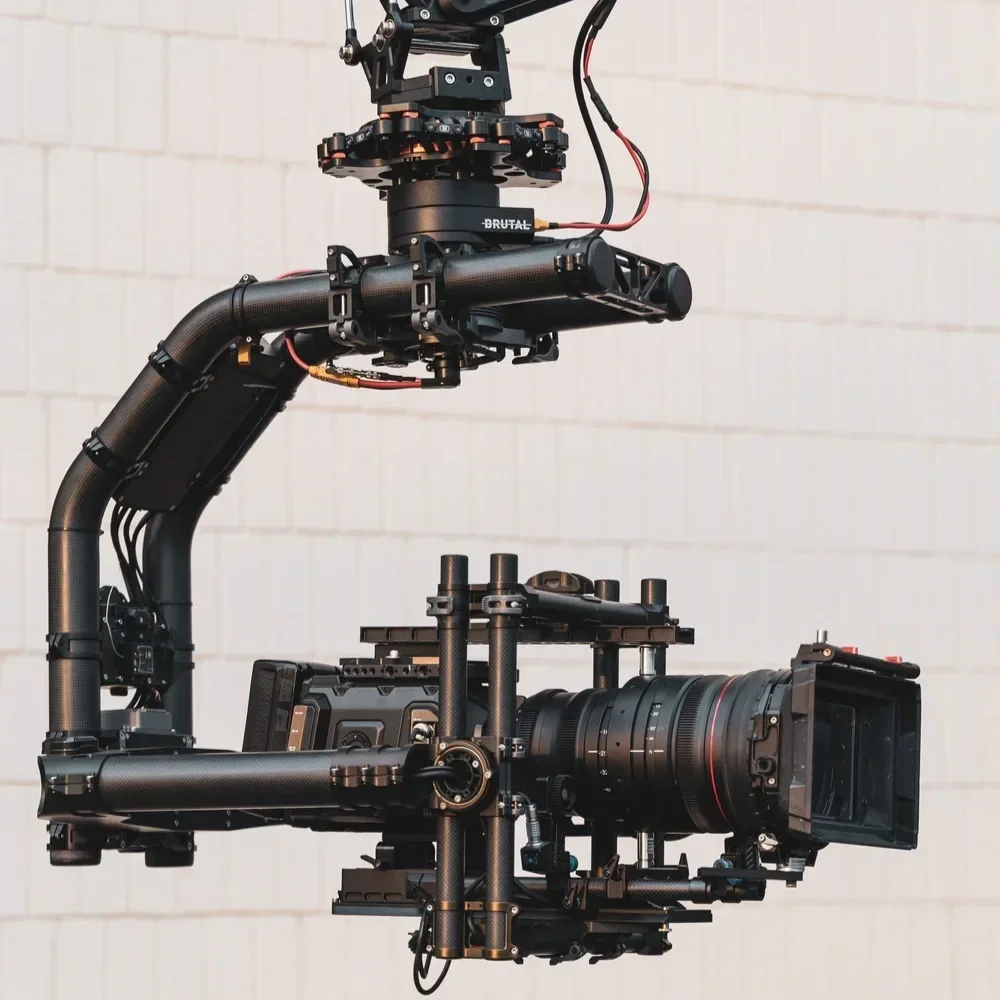

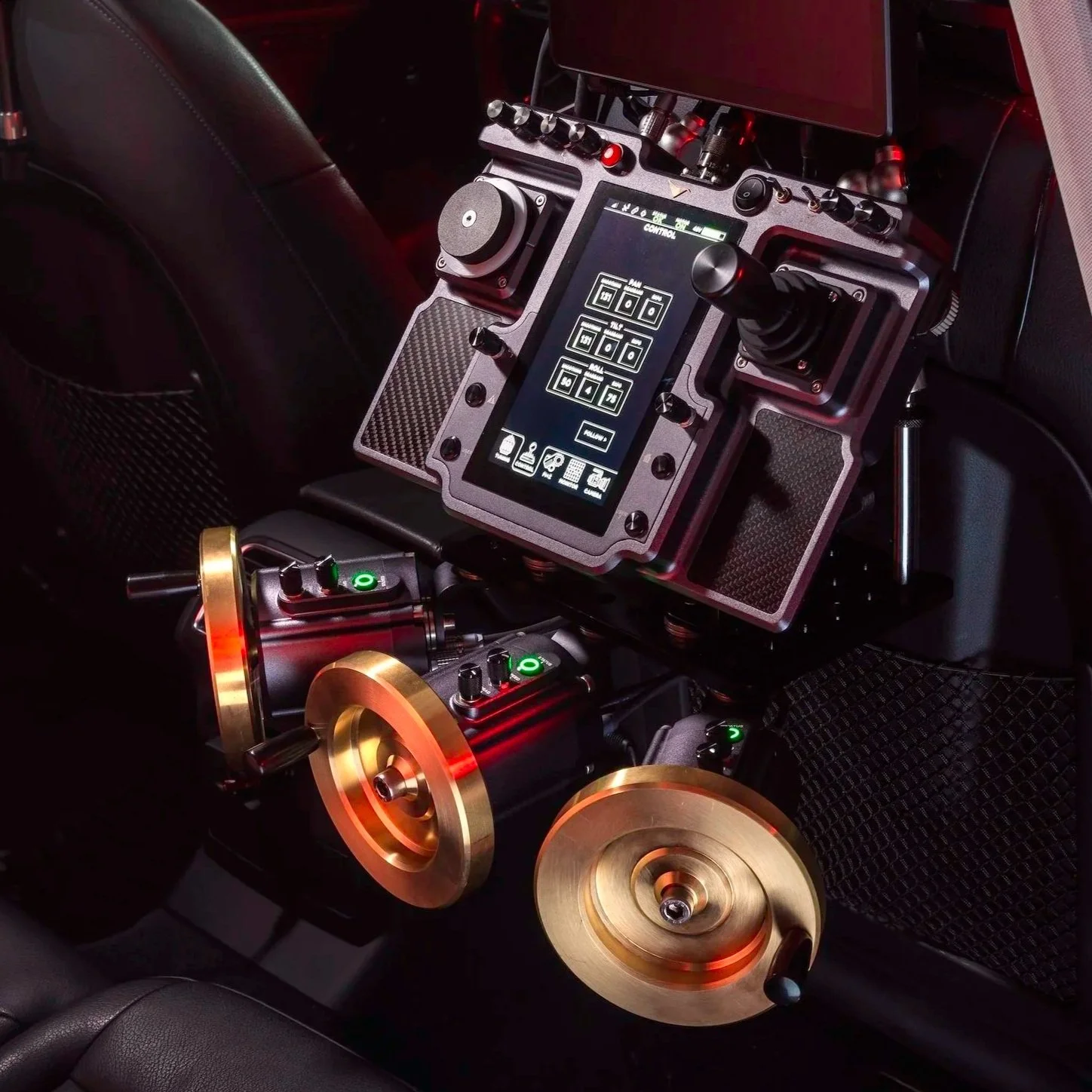

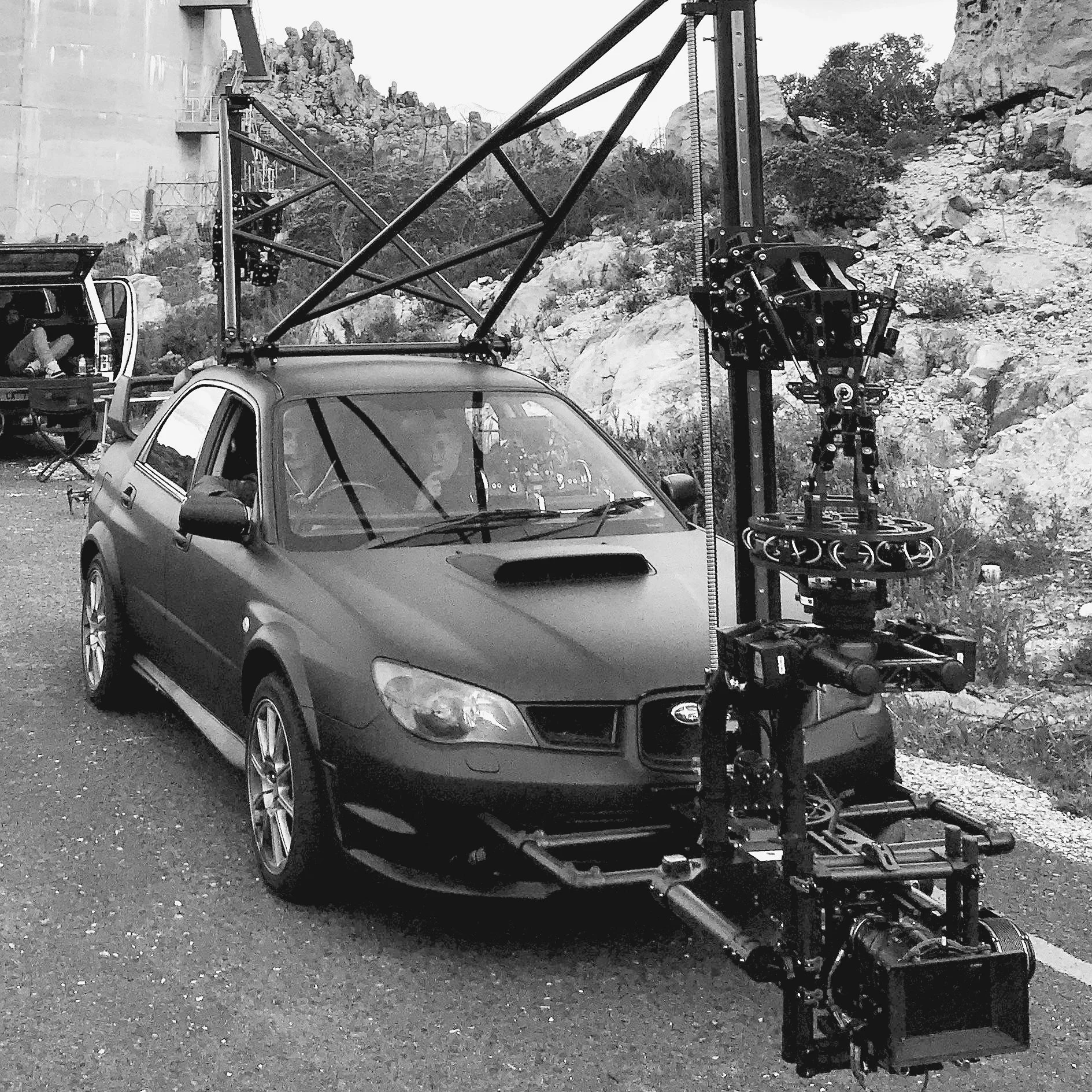

The Falcon is our in-house, custom-designed high-speed camera chase vehicle. equipped with customised 2-axis robotic arms, Three-stage vibration dampening, paired together with either the DJI - RONIN 2, FREEFLY - MOVI XL or the mightiest of remote heads available, such as the latest MOTORCRANE - TITAN. Allowing for a wide range of camera build options or specific user preferences.

SUBARU IMPREZA STI

At the core of our setup is a Subaru Impreza 2.5 Turbo STI AWD, specially modified for seamless, dynamic high-speed filming. This powerful, all-wheel-drive chase vehicle is purpose-built for performance, stability, and precision on set.

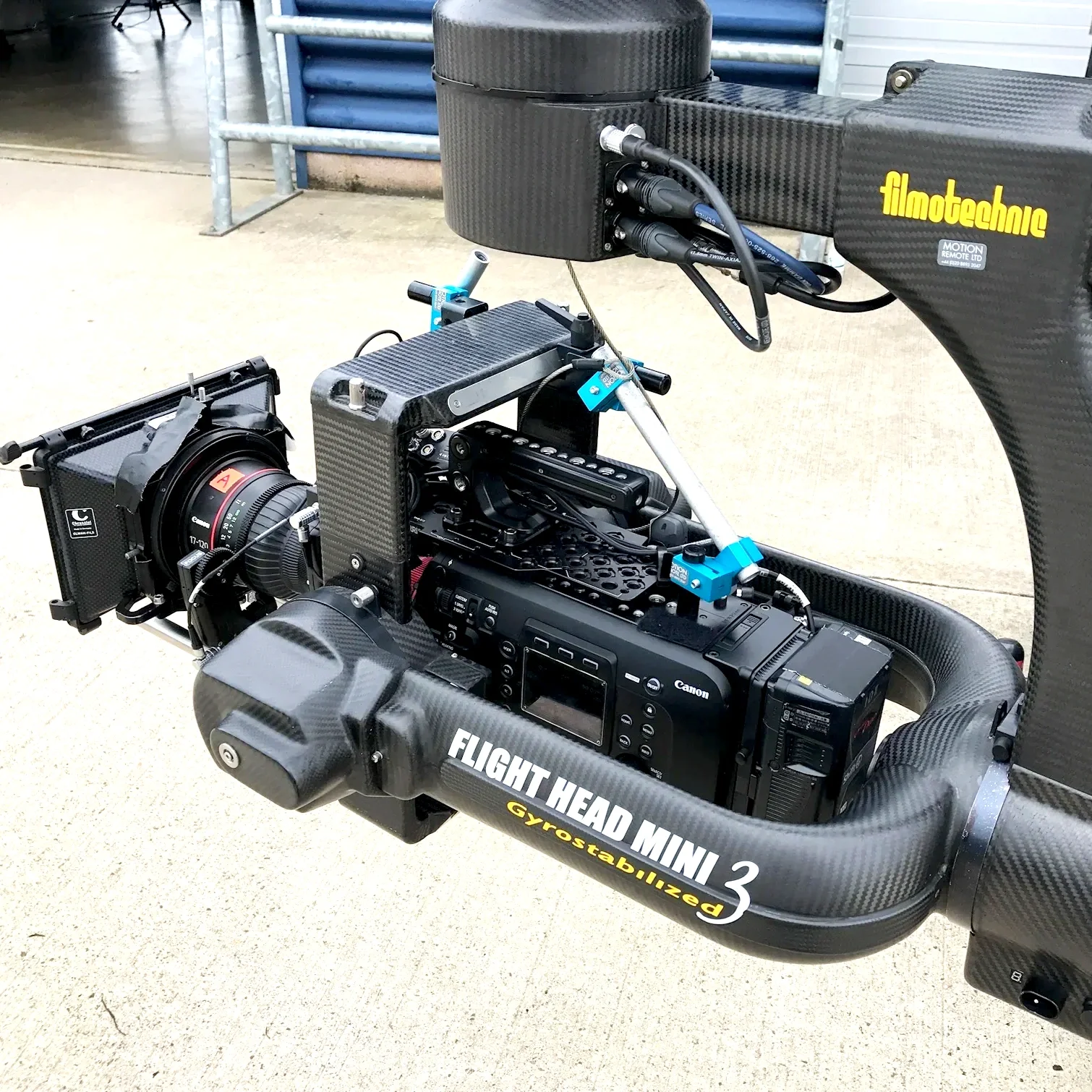

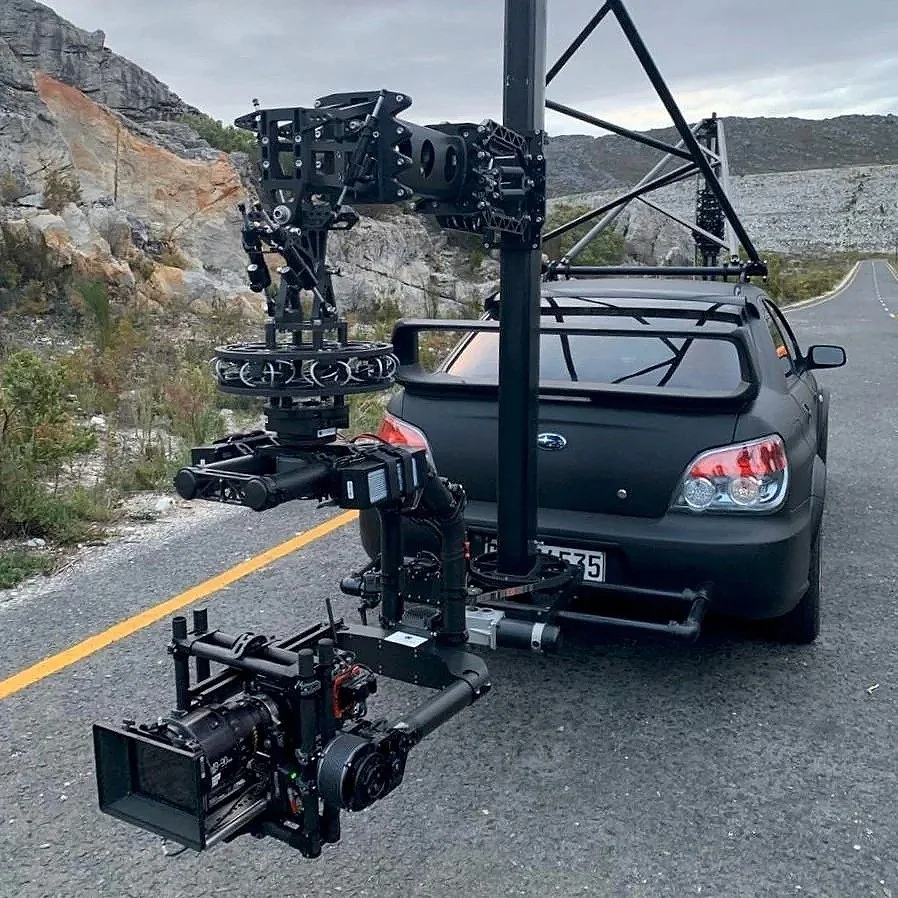

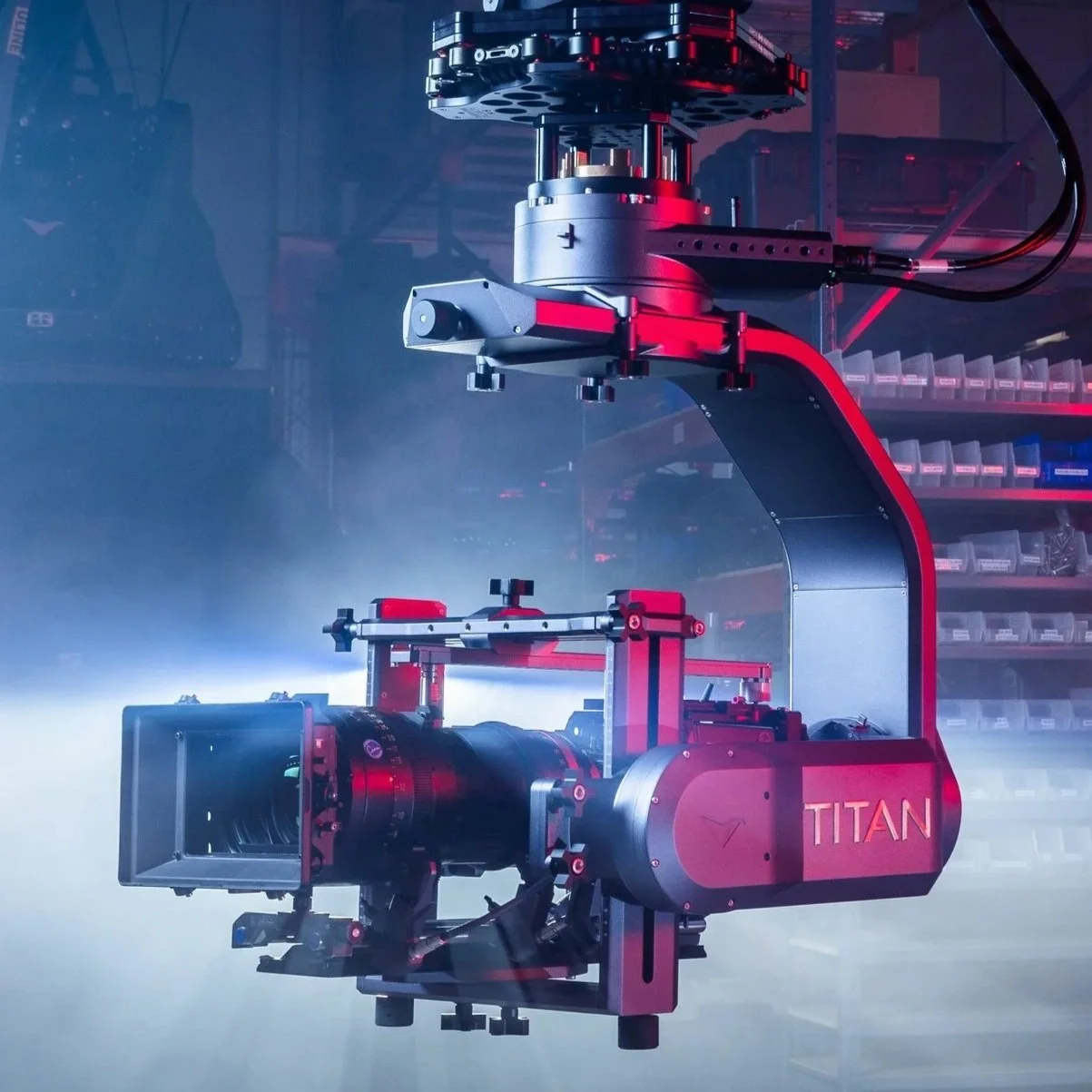

Mounted on the vehicle are two custom-built “Big Arms”, our enhanced version of the well-known “Black Arm,” engineered to easily handle a payload of up to 50kg. It supports a fully loaded Flighthead Mini 3, the latest Motorcrane Titan, or the Freefly Movi XL. A dedicated arm operator offers the ability to reposition the remote head from the front to the rear of the vehicle (or vice versa) without needing to Re-Rig, dramatically streamlining the shooting process.

Two robotic arms provide motorised pan vertical travel, enabling responsive and smooth camera movement from both front and rear positions, or even simultaneously, for those bold enough to try it. “The Falcon” is a vertical lifter for remote heads and or also be used stationary.

The Subaru Impreza STI was selected for its low centre of gravity and superb cornering ability, allowing us to stay locked onto the hero vehicle through intense, action-packed sequences. Compared to traditional pipe rig setups, our system is faster to deploy and adjust, saving valuable time on set while delivering cinematic, high-impact tracking shots.

Tower & Robotic Arm Specs:
Total Weight 120kg
Max Payload: 50kg
Height 240cm
Travel-distance: 210cm
Variable Speed 1 m/s
- Remote controlled motorised rotatable Pan axis, with 180° travel.
- 75V Powered worm drive shaft with servo drive stepper motors.
- Cable loom provide Power with XLR & D-Tap connectors + 2x BNC video cables to the front & Rear of the vehicle.
- Mitchell Mount plate as standard mounting base on the “Big Arms”
- Wireless, 2.4ghz, remote control for both Front and Rear Arms with speed and position control.
- 24V dedicated power for the Pan axis.
- 75V dedicated power for vertical up/down travel on the tower.
- Designed, Machined, Fitted aluminium Robotic Up/Down crane towers to vehicle, both front and Rear of the vehicle.
- Both Include a Full Remote Control 2 Axis Up/Down & Left/Right Adjustment
- Adjustable Dampening Arms with Vertical Travel and Vibration Isolation Ring Fitted to Both Robotic Up/Down Rigs
- Each arm has custom covers for protection.
Subaru Impreza STI 2.5 Turbo All Wheel Drive, Fully CNC forged engine internals, Adjustable racing suspension front & back, Big Brembo brake disks all round, Electronic boost control and puts out around 350 HP.
0-100km/h: 7s loaded
Seats: 4 (Precision Driver, DOP, Focus Puller, Arm operator).
Weight GMV: 1900kg
Dimensions (Travel Mode): Arms Retracted
Ground to highest point: 2.7m, Length: 5.6m, Width: 2m
Dimensions (Shooting mode): Arms Extended
Ground to highest point: 2.7m, Length: 7m, Width: 2m to 2.5m
MOUNTING POINTS:

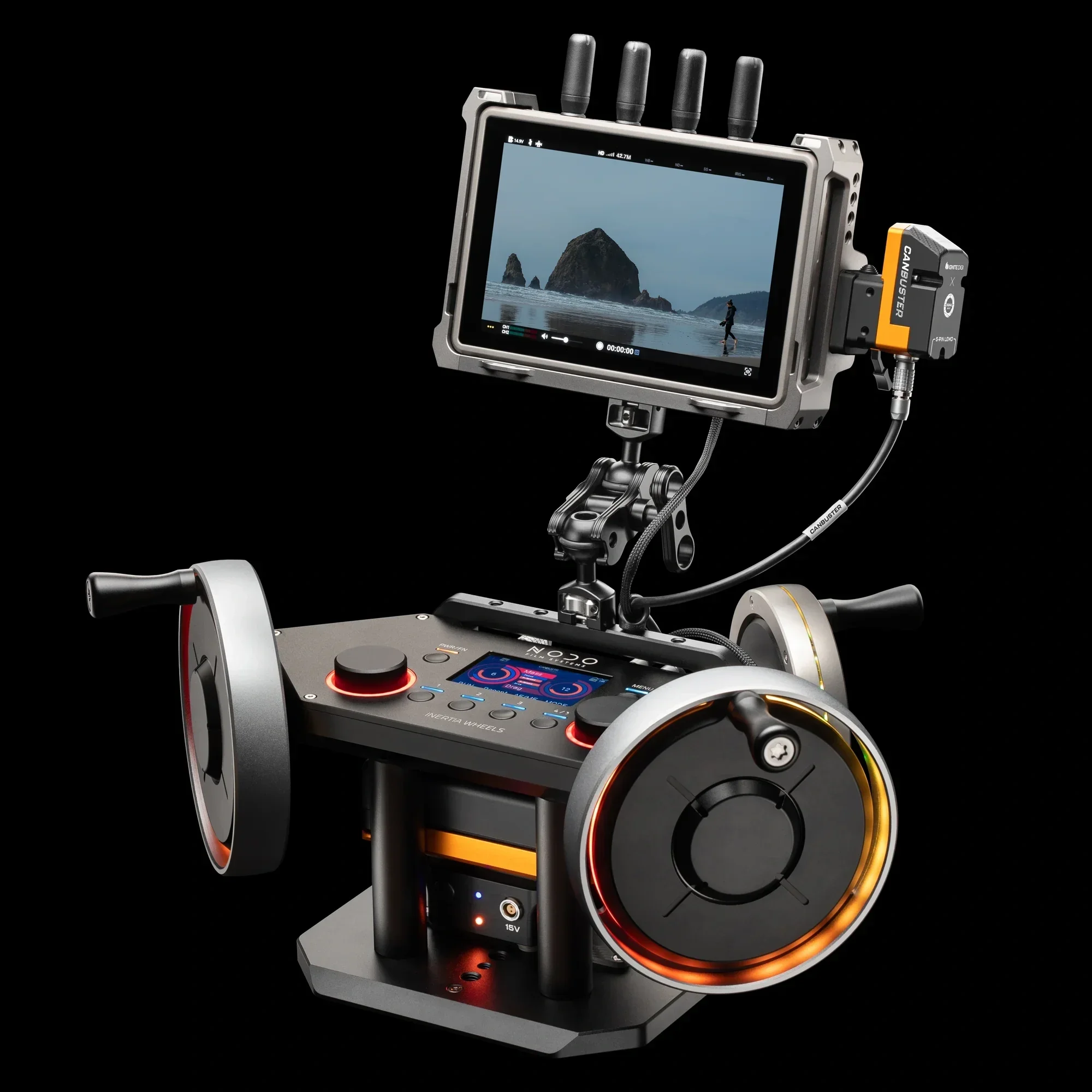

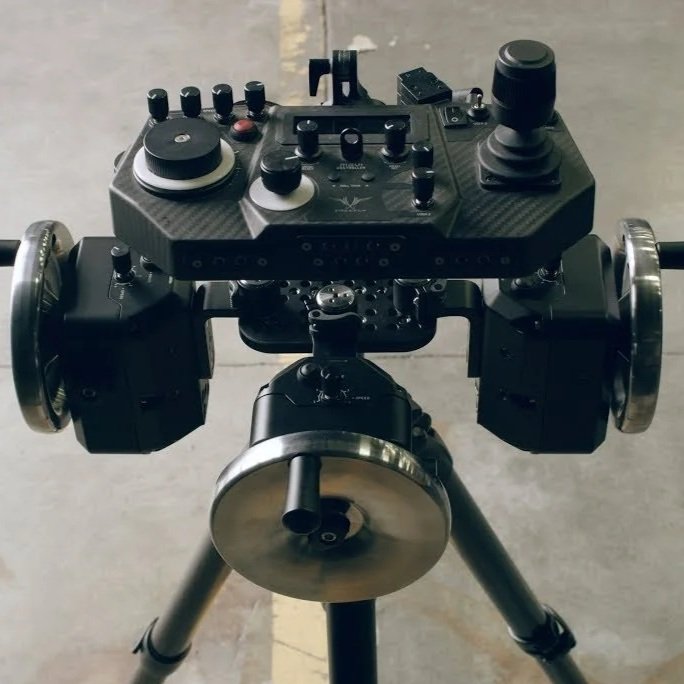

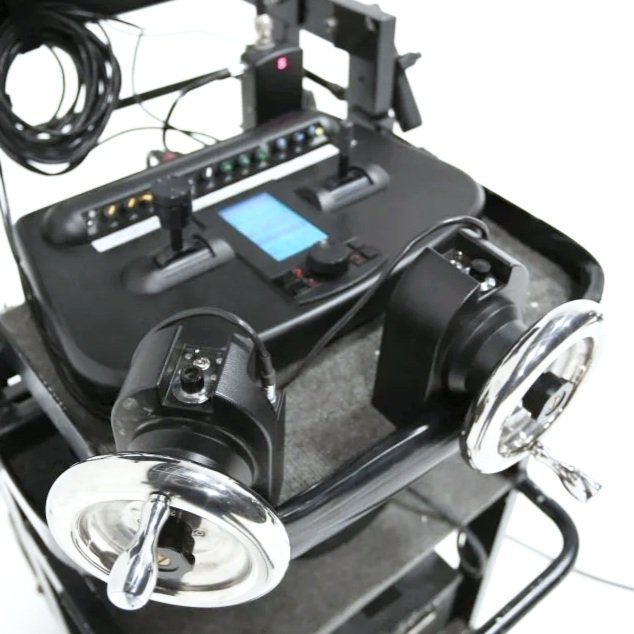

Height adjustable aluminium cheese plate tray for mounting 3-axis Wheels or Joystick/Control desks.
MONITORS/VIDEO:
NB: Includes 12V Power point, High tower mounting point cheese plate + BNC for wireless video transmission. (Video Transmitter Not Included)
1x Driver’s monitor: 5" Recorder/Monitor BlackMagic Design Video Assist 3G-SDI/HDMI
1x DP/Remote head operator monitor: 12-Inch Small HD High Bright
2x rear monitors: 7'' 3G Blackmagic Video Assist.
7x BNC VIDEO OUTPUTS (3x Front dash & 4x Rear centre consol)
CAMERA POWER:
12V & 24V REGULATED CAMERA POWER (XLR to D-Tap cables)
36V REGULATED HEAD POWER
ACCESORY POWER:
8X D-TAP 12V OUTPUTS
2x CIGARETTE LIGHTER 12V OUTPUTS
4x 5V USB TYPE 2 OUTPUTS
HD Witness Cameras
